OBD-II Socket 12V to Open Flying Lead 2 metres

  • Model: OBDSOCK-L
  • Shipping Weight: 0.2 g
  • 0 Units in Stock
  • Manufactured by: ECUFix

 Ask a Question

£19.99

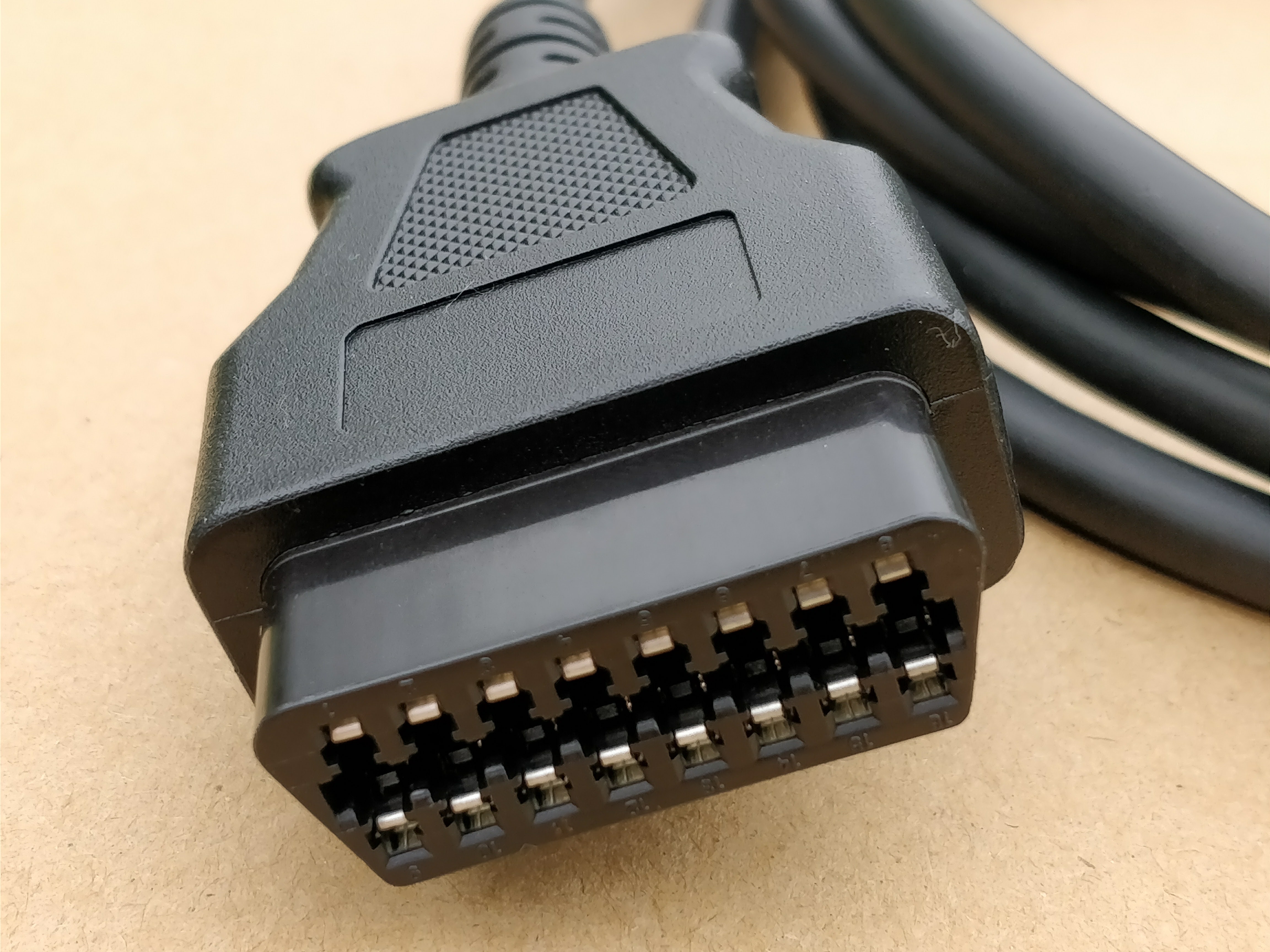

OBD-II Moulded Socket With 2 Metres Of Cable

Exclusive to ECUFix, here we have a professionally moulded 12V OBD-II Socket (also compatible with 24V Plugs) complete with 2 metres of cable.

Description:

  • OBD-II Socket.
  • Type A (12V). (will also fit 24V Type B)
  • Has all 16 pins installed and connected.
  • Lead is stripped, tinned and solderable.
  • Comes pre-moulded with shrouds and cable strain relief.
  • Tamper-proof design.

 OBD-II-Socket

Technical Specification:

  • OBDII Socket: J1962 16-Pin Female (from Car)
  • Weight : About 50g
  • Color : Black

OBD2 Connector Pinout

PIN Function Colour
OBD-II Socket Pinouts
1 Manufacturer's discretion Black
2 SAE J1850 Line (Bus +) * Brown
3   Red
4 Chassis Ground Orange
5 Signal Ground Yellow
6 SAE J2284 (CAN High) Green
7 K Line of ISO 9141-2 & ISO/DIS 4230-4 Blue
8   Purple
9   Grey
10 SAE J1850 Line (Bus -) White
11   Pink
12   Light Green
13   Black/White
14 SAE J2284 (CAN Low) Brown/White
15 L Line of ISO 9141-2 & ISO/DIS 4230-4 Red/White
16 Unswitched Vehicle Battery Positive Orange/White
