Official Autel Firmware Update Applied: v2.6
It's like having your very own VAG-COM interface & PC in the palm of your hand! Probably the best handheld scanner you can buy.

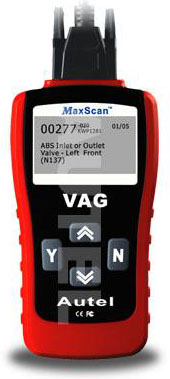

The MaxScan VAG405 VS862 Scanner is an OEM level diagnostic tool with extra features for VW, Audi, SEAT and Skoda vehicles sold wordwide since 1990. Basic functions like reading & erasing of error codes can be performed on all OBD2 & CAN-BUS vehicles. It will perform advanced functions on VW, Audi, Seat & Skoda vehicles like reseting service lights on the engine, ABS, Airbags, transmission, radio, climate control, instruments, immobilizer & more.
The VAG SCANNER VAG405 Code Reader is specially designed to work with all VAG VW, AUDI, Skoda, SEATS including those equipped with the newly released Controller Area Network(CAN) protocol. Though it is small, it is capable of retrieving same information as large expensive scanners. If your car's Check Engine Light is on, you need this device. This VAG Code Reader is a handy device for car-owners, DIY customers and especially professional technicians that need to read VAG diagnostic trouble codes (DTCs) from the on-board computers (ECUs) of 1990 and newer VAG based vehicles. With this smart reader, you are able to immediately self-troubleshoot the cause of the "Check Engine" light wherever you are. The Code Reader will also enable the user to erase the trouble codes and shut off (reset) the check-engine light as soon as the vehicle is repaired.
For those VW/AUDIs with old-style 2+2 Data Link Connector (DTC), you need to plug into a Audi/VW 2+2 OBD adapter.
● Works with Volkswagen and Audi (Audi/ Seat/ Skoda/ Jetta/ Golf / Beetle/ Touareg/ GTI/ Passat and more) sold worldwide since 1990
● Reads and erases Diagnostic Trouble Codes (DTCs) of engine, ABS, airbags, transmission, radio, climate control(A/C), cent. elect., steering wheel, instruments, immobilizer, etc. (18 Systems)
● Reads and clears generic trouble codes of cars using ISO 9141-2 ("CARB"), ISO 14230 ("KWP-2000") and ISO-15765 ("CAN") protocols
● Turns off MIL lights of engine, airbags, ABS , A/T and most other systems
● C.A.N.(Controller Area Network) CANBUS capability
● Resets oil service light (depends on vehicle support)
● Retrieves vehicle information (VIN)
● Displays I/M Readiness Status
● Displays DTC definitions on unit screen
● System upgradeable via internet
● Can also perform basic OBD-II/EOBD communication on non-VAG vehicles!
Accessories
● User’s Manual
● OBD II cable
● USB cable
● Carry case
Protocols
Easy To Use:
- When your "Check Engine" light or "Service Engine Soon" lights up, stop the car and apply the parking brake.
- Switch on the ignition and then plug the code reader into the 16-pin diagnostic socket (OBD-II connector) usually located under the instrument panel in the car.
- Push the Read button and the unit automatically gets the Diagnostic Trouble Codes (DTCs) in less than 10 seconds.
- Identify the trouble codes and retrieve their detailed descriptions by looking up the Diagnostic Trouble Codes(DTCs) list in the enclosed user manual.
- Know what is wrong and save yourself lots of money!!!!
Downloads
Fault Code Library
Try here for comprehensive list of VAG DTCs.
Will It Work With My Car?
Works on most VW, Audi, Seat & Skoda vehicles sold worldwide since 1990. Jetta, Golf, Beetle, Touareg, GTI, Passat & more.
The OBD II Code Reader is specially designed to work with all post-1990 VAG based vehicles whether it has CAN-Bus, K line or KKL communications.
